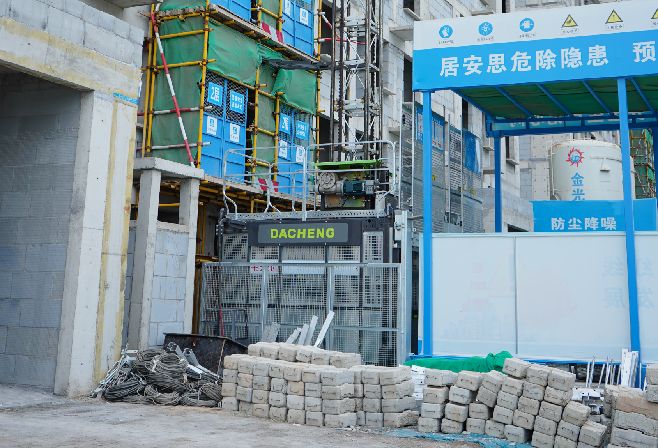

Thanks to computer-aided design, this machine features an attractive appearance, lightweight structure, convenient disassembly and assembly, safety and reliability, strong applicability, and wide-ranging uses compared with traditional construction material hoists. It can be combined into various forms as needed, including regular and irregular cross-sections, with a lifting capacity of 1200kg and an operating speed of 26m/min. After installing VVVF speed regulation and PLC control, it can achieve stepless speed regulation from 0 to 50m/min, as well as automatic floor selection and leveling, meeting the needs of different users. It boasts superior technical performance, safer and more reliable working mechanisms, and a more compact structure.

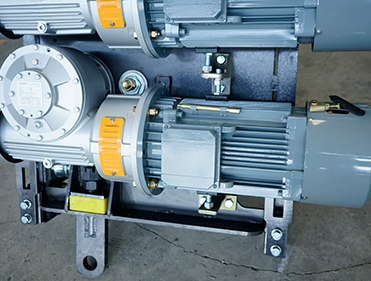

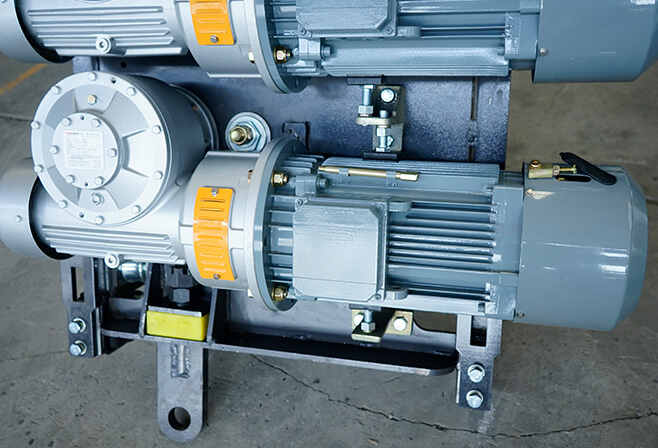

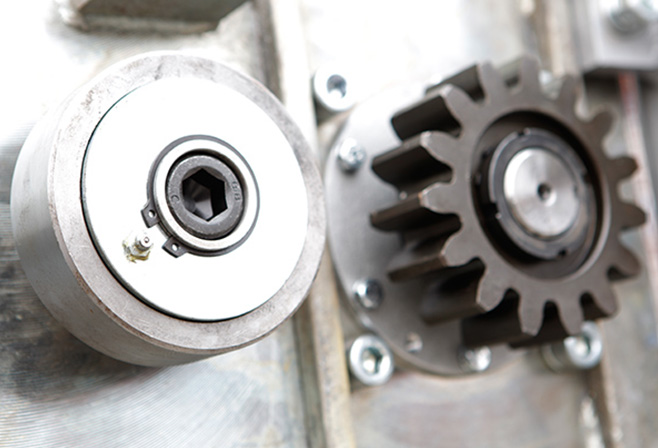

The drive unit is the power part for the hoist's operation, driving the self-weight of the hoist and the load (or construction personnel) in the cage to move up and down. The drive unit is composed of a drive gear, reducer, coupling, plum blossom coupling elastic block, brake motor, etc.

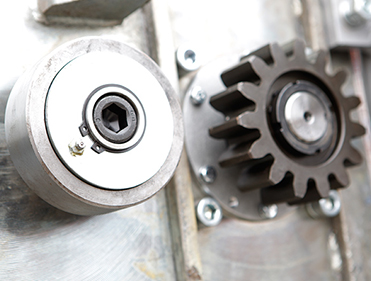

With modular design, different specifications of material hoists with varying speeds and lifting capacities can be combined through different configurations. The standardization, practicality, and generalization degree of the product are greatly improved.

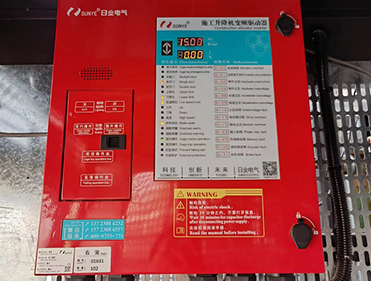

The latest frequency conversion driver enables automatic floor stopping, reduces costs, and upgrades benefits, which can be optionally configured by users.

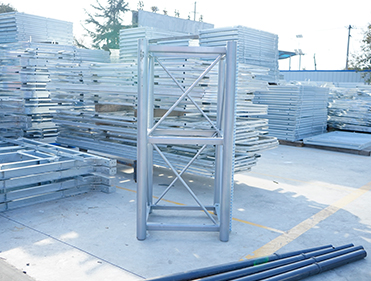

The square frame of the standard section is welded with international 75×50×6 angle steel. The vertical round tubes are processed by a full-automatic CNC boring machine, and then welded at one time by CO₂ gas shielded welding on the standard section fixture, featuring small deformation, high welding quality, stable structure, good interchangeability, and straight guide rails, resulting in light vibration and low noise during the operation of the whole machine.
It is equipped with complete and reliable safety protection devices. The body adopts a bending process with national standard steel, the cage uses a baking varnish process, and the body is safe and firm.

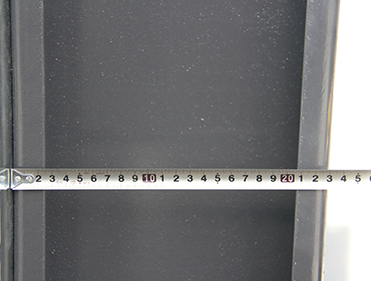

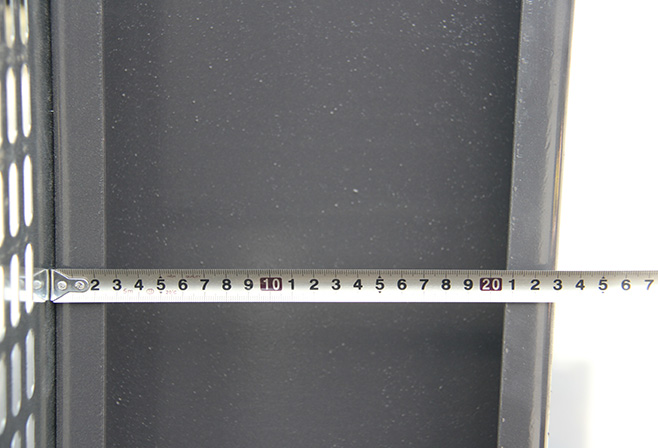

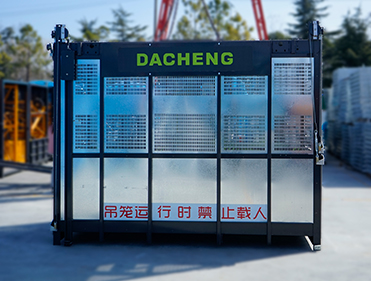

The cage beam is the core part of the cage skeleton. The main load-bearing parts of the beam (referring to the top and bottom of the cage) of our company's products are all made of 16# cold-formed channel steel (manganese steel), effectively ensuring the service life and firmness of the whole machine.
|
Serial Number |
Unit |
Item |
SC120 |
Parameter Remarks |
|
1 |
Rated Load Capacity |
kg |
1200 |
- |
|
2 |
Rated Lifting Speed |
26 |
m/min |
- |
|
3 |
Rated Lifting Height |
150 |
m |
- |
|
4 |
Cage Inner Space (Length×Width) |
mm×mm |
3000×1500 |
- |
|
5 |
Cage Inner Net Height |
2180 |
mm |
- |
|
6 |
Cage Mass |
kg |
1140 |
Including drive body |
|
7 |
Starting Current |
A |
70 |
- |
|
8 |
Working Current |
A |
34 |
- |
|
9 |
KVA |
15 |
Power Consumption |
|
|
10 |
Motor Power |
kW |
15 |
JC=25% / JC=100% |
|
11 |
Standard Section Mass |
kg |
150 |
- |
|
12 |
Total Machine Self-Weight |
t |
17.15 |
H=156m |
|
13 |
Safety Device Model |
- |
SAJ30-1.2 |
- |

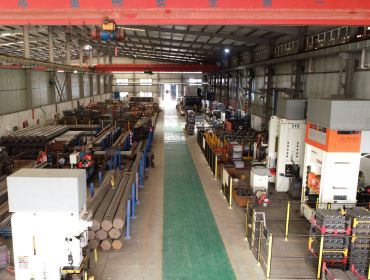

Henan Dacheng Machinery Manufacturing Co., Ltd. has constructed a large-span steel structure factory building in accordance with international standards. The factory features excellent lighting, a well-planned layout, and complete production equipment, including over 200 sets of large and medium-sized production machinery. This includes internationally advanced precision equipment such as robotic welding assembly lines, fully automated painting production lines, CNC high-precision gantry machining centers, CNC laser cutting machines, CNC shearing machines, CNC bending machines, CNC plasma cutting machines, and stamping equipment production lines. The tooling equipment and high-precision debugging platforms are at the forefront of domestic industry standards, enabling mass production capabilities.

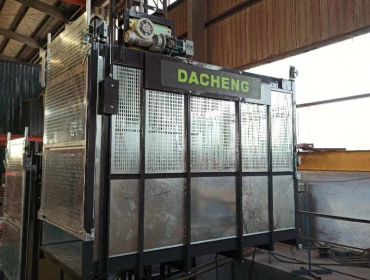

Each construction elevator of our company must undergo professional debugging on a dedicated testing platform 1 Adjustment: Adjust the clearances of various rollers, gears, backrest wheels, etc. 2. No-load Full Machine Test: The elevator shall operate with the cage rising and descending the full test height for 300 cycles. The cage must start and stop normally, run smoothly, and produce no abnormal noises. 3. Rated Load Test for the Entire Machine: Load the elevator with the rated capacity, and operate the cage smoothly over the full test height for 150 cycles. The cage must run smoothly, with normal start-up and braking, and no abnormal noises. 4 Rated Load Fall Protection Test: Perform a fall protection test by activating the fall protection operation button. The braking distance of the hoist cage should be maintained between 0.25-1.2 meters. During the fall protection test, when the fall safety device activates, the main electrical circuit and the brake circuit should be automatically disconnected.
