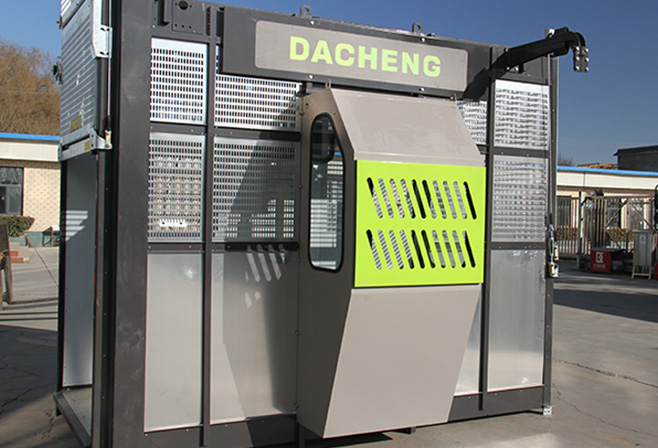

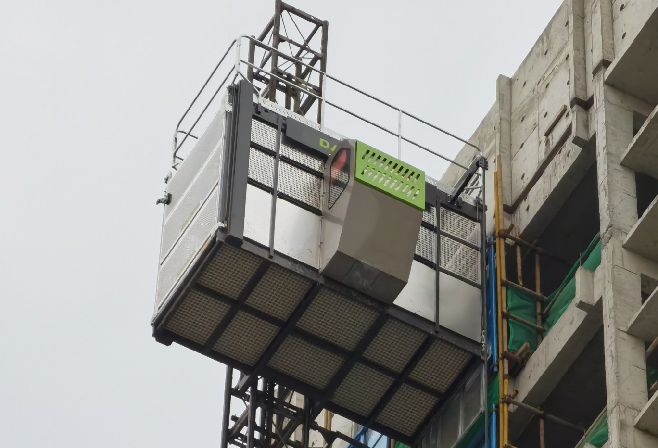

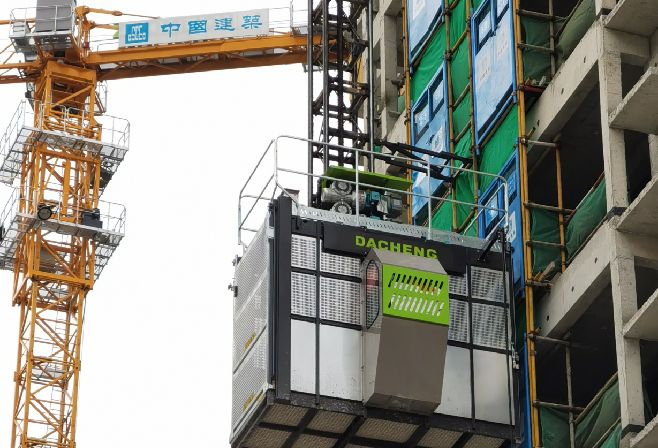

The SC200 construction hoist is composed of the car, driving mechanism, standard sections, wall attachments, chassis, fence, and electrical system. It is a mechanical equipment commonly used for high-rise transportation in bridges, chimneys, buildings, etc. Due to its unique box structure, it offers a comfortable and safe ride. On construction sites, the construction elevator is usually used in conjunction with tower cranes.

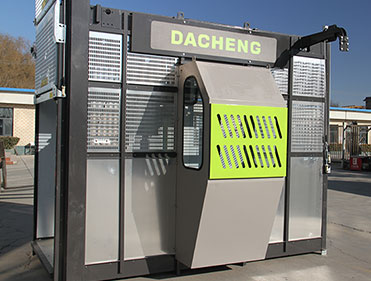

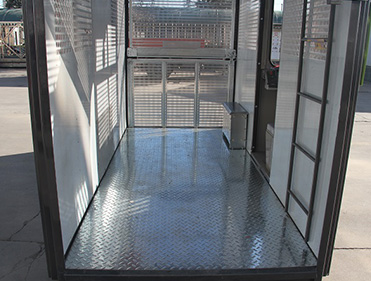

The cage frame adopts a bending process with national standard steel, and the cage uses a baking varnish process, ensuring the body is safe and firm. The cage floor adopts a hot-dip galvanizing process, which can be maintained for about 50 years without repair, effectively extending the service life of the equipment.

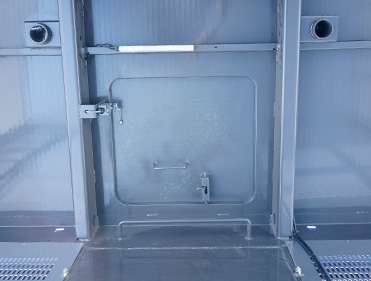

Each cage of the vertical transportation construction hoist on the construction site is equipped with a detection door, which facilitates maintenance and repair in the middle and later stages of use (mainly conducive to oiling the gears and racks, and checking the tightness of standard section bolts and rack bolts), effectively avoiding the unsafe hidden danger of operating on the top of the cage.
The safety gear of the vertical transportation construction hoist on the construction site ensures the safe operation of the hoist. Safety switches such as overload and speed limit are set in the circuit. When the above situations occur during operation, the hoist will immediately stop automatically to avoid accidents. Each door on the cage is also equipped with a limit switch. When any door is abnormally opened, the cage cannot start or will stop running immediately.

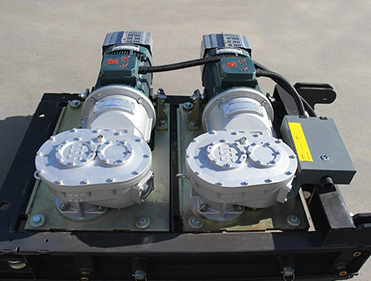

The transmission mechanism components of the company's vertical transportation construction hoist on the construction site are all from domestic and foreign brand manufacturers. The motor and reducer have low noise, smooth starting and braking, and are durable. In addition, each motor of each set of transmission mechanisms of the company is equipped with a dual protection of a motor bracket and a motor strap, which effectively ensures the stability of the motor and reducer during operation (especially at the moment of starting and braking). Precisely because the motor and reducer run stably, the service life of the motor, reducer, gears, racks, etc., is prolonged.

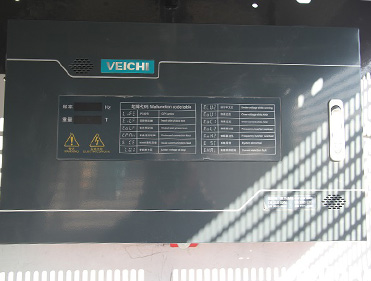

The electrical system is the mechanical command part of the hoist. All actions of the hoist are commanded by the electrical system, which includes the upper electrical box, lower electrical box, and control cables, etc.

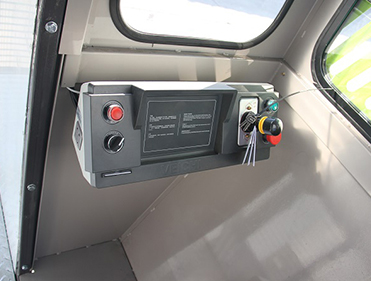

Each cage is equipped with an independent and spacious cab. The top and bottom of the cab adopt double-layer roof welding, which effectively prevents the personal safety of the driver from being endangered by falling debris at high altitudes during construction. The operation panel is made of 304 stainless steel, and the lifting switch uses imported Schneider components, which are durable.
The cage girder is the core part of the cage skeleton. The main load-bearing parts of the girder of the company's products (referring to the top and bottom of the cage) are all made of 16# cold-formed channel steel (manganese steel), effectively ensuring the service life and firmness of the whole machine.

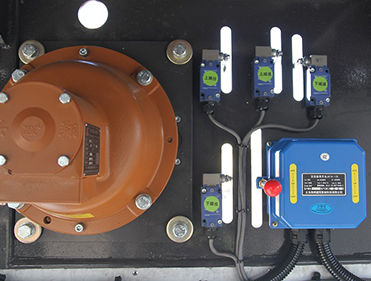

Safety switches such as overload and speed limiter are installed in the circuit of the anti-drop device of the vertical transportation construction hoist to ensure the safe operation of the hoist, the lift automatically avoids accidents immediately. The doors on the suspension cage are also provided with limit switches. When any door is abnormally opened, the suspension cage can not be started or immediately stopped.
|
Serial Number |
Unit |
Item |
SC200 |
Parameter Remarks |
|
1 |
Rated Load Capacity |
kg |
2000 |
- |
|
2 |
Rated Lifting Speed |
0-40 |
m/min |
- |
|
3 |
Rated Lifting Height |
300 |
m |
- |
|
4 |
Cage Inner Space (L×W) |
mm×mm |
3000×1500 |
- |
|
5 |
Cage Inner Net Height |
2180 |
mm |
- |
|
6 |
Motor Power |
kW |
15 |
JC=25% / JC=100% |
|
7 |
Standard Section Mass |
kg |
150 |
- |
|
8 |
Safety Device Model |
- |
SAJ40-1.2 |
- |
Henan Dacheng Machinery Manufacturing Co., Ltd. has constructed a large-span steel structure factory building in accordance with international standards. The factory features excellent lighting, a well-planned layout, and complete production equipment, including over 200 sets of large and medium-sized production machinery. This includes internationally advanced precision equipment such as robotic welding assembly lines, fully automated painting production lines, CNC high-precision gantry machining centers, CNC laser cutting machines, CNC shearing machines, CNC bending machines, CNC plasma cutting machines, and stamping equipment production lines. The tooling equipment and high-precision debugging platforms are at the forefront of domestic industry standards, enabling mass production capabilities.
Each construction elevator of our company must undergo professional debugging on a dedicated testing platform 1 Adjustment: Adjust the clearances of various rollers, gears, backrest wheels, etc. 2. No-load Full Machine Test: The elevator shall operate with the cage rising and descending the full test height for 300 cycles. The cage must start and stop normally, run smoothly, and produce no abnormal noises. 3. Rated Load Test for the Entire Machine: Load the elevator with the rated capacity, and operate the cage smoothly over the full test height for 150 cycles. The cage must run smoothly, with normal start-up and braking, and no abnormal noises. 4 Rated Load Fall Protection Test: Perform a fall protection test by activating the fall protection operation button. The braking distance of the hoist cage should be maintained between 0.25-1.2 meters. During the fall protection test, when the fall safety device activates, the main electrical circuit and the brake circuit should be automatically disconnected.
The elevator equipment produced by our factory has been exported to various countries including Russia, North Korea, Australia, Indonesia, Iraq, the Philippines, Vietnam, Myanmar, Thailand, Rwanda, Argentina, the Democratic Republic of the Congo, Zambia, the United Arab Emirates, Cameroon, Brunei, Lesotho, Uruguay, Tajikistan, Uzbekistan, Kazakhstan, Kyrgyzstan, Ethiopia, Papua New Guinea, Honduras, Bolivia, Belize, Sri Lanka, Maldives, Bangladesh, Armenia, Romania, Nigeria, the Dominican Republic, Kuwait, Outer Mongolia, West Africa Guinea, Madagascar, Senegal, Georgia, Mozambique, etc.
Establish specialized one-on-one customer service and after-sales maintenance reminder services; The after-sales service team conducts regular video follow ups on the usage of the equipment. Be considerate of customers, save them money, and make them worry free! While choosing Dacheng products, you will also enjoy professional services Our team provides you with comprehensive technical support.
